Radial leaded film capacitor with 680pF capacitance and 5% tolerance. Features a 1kV DC voltage rating and 600V AC rating, utilizing a PP dielectric. Designed for through-hole mounting with a 7.5mm lead pitch and 0.5mm lead diameter. Operating temperature range spans from -55°C to 105°C.
PackageRadial
Capacitance680pF
Voltage Rating1kV
MountingThrough Hole
Quick Jump:
Technical Specifications
TDK B32620J681J technical specifications.
General
| Capacitance | 680pF |
| Package/Case | Radial |
| Construction | RADIAL |
| Depth | 5mm |
| Dielectric | PP |
| Dielectric Material | PP |
| Height - Seated (Max) | 0.413inch |
| Lead Diameter | 0.5mm |
| Lead Free | Lead Free |
| Lead Length | 6mm |
| Lead Pitch | 7.5mm |
| Length | 0.394inch |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Series | B32620 |
| Termination | PC Pins |
| Tolerance | 5% |
| Voltage Rating | 1kV |
| Voltage Rating (AC) | 600V |
| DC Rated Voltage | 1kV |
| Width | 0.197inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK B32620J681J Datasheet
Download the complete datasheet for TDK B32620J681J to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

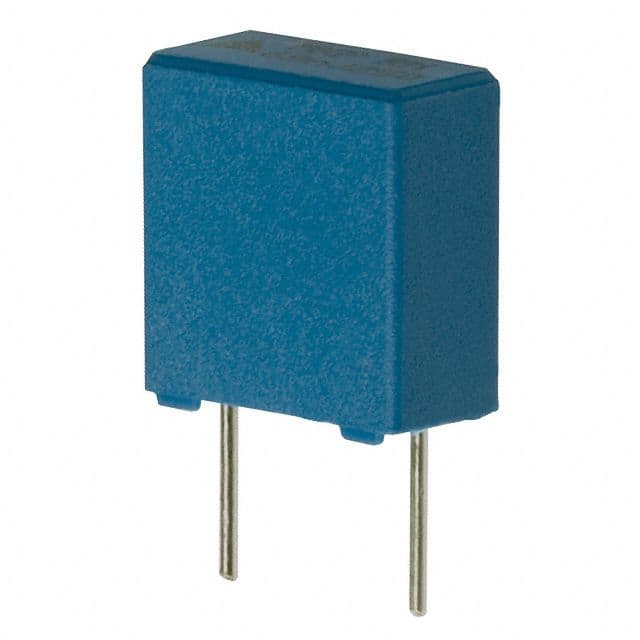

Product Images
