TDK
B32621A0222J000

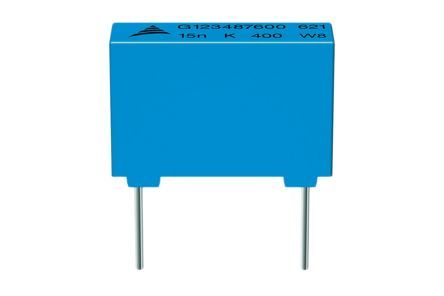

Film Capacitor, Polypropylene, 1000V, 5% +Tol, 5% -Tol, 0.0022uF, Through Hole Mount, 5116, RADIAL LEADED
PackageRadial
Capacitance2.2nF
Voltage Rating1kV
Quick Jump:
Technical Specifications
TDK B32621A0222J000 technical specifications.
General
| Capacitance | 2.2nF |
| Package/Case | Radial |
| Dielectric | PP |
| Dielectric Material | Polypropylene |
| Lead Pitch | 10mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | B32621 |
| Termination | PC Pins |
| Tolerance | 5% |
| Voltage Rating | 1kV |
| Voltage Rating (AC) | 500V |
| DC Rated Voltage | 1kV |
Compliance
| RoHS | Compliant |
Datasheet
TDK B32621A0222J000 Datasheet
Download the complete datasheet for TDK B32621A0222J000 to view detailed technical specifications.
No datasheet is available for this part.
