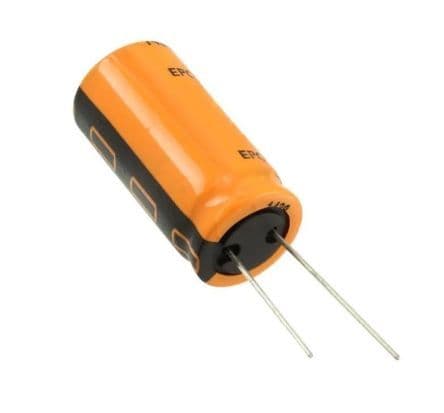

The TDK B41858C6477M000 is a 470uF aluminum electrolytic capacitor with a tolerance of 20%. It features a radial package with a diameter of 12mm and a length of 20mm, suitable for through hole mounting. The capacitor has a maximum operating temperature of 105°C and a minimum operating temperature of -55°C. It is RoHS compliant and has a DC rated voltage of 50V.
PackageRadial
Capacitance470uF
MountingThrough Hole
Quick Jump:
Technical Specifications
TDK B41858C6477M000 technical specifications.
General
| Capacitance | 470uF |
| Package/Case | Radial |
| Diameter | 12mm |
| ESR (Equivalent Series Resistance) | 110mR |
| Impedance | 104mR |
| Length | 20mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 350 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | B41858 |
| Termination | Radial |
| Tolerance | 20% |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
TDK B41858C6477M000 Datasheet
Download the complete datasheet for TDK B41858C6477M000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
