TDK
B59970C0120A070
RESISTOR, TEMPERATURE DEPENDENT, PTC, 9.4ohm, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT
PackageRadial
Resistance9.4R
MountingThrough Hole
Quick Jump:
Technical Specifications
TDK B59970C0120A070 technical specifications.
General
Package/Case
Radial
Depth
3.5mm
Height
12.5mm
Hold Current
150mA
Lead Free
Lead Free
Lead Length
25mm
Max Current Rating
3A
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
80V
Mount
Through Hole
Operating Supply Voltage
80V
Packaging
Strip
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
9.4R
RoHS Compliant
Yes
Thickness
3.5mm
Tolerance
25%
Trip Current
300mA
Width
9mm
Compliance
RoHS
Compliant
Datasheet
TDK B59970C0120A070 Datasheet
Download the complete datasheet for TDK B59970C0120A070 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

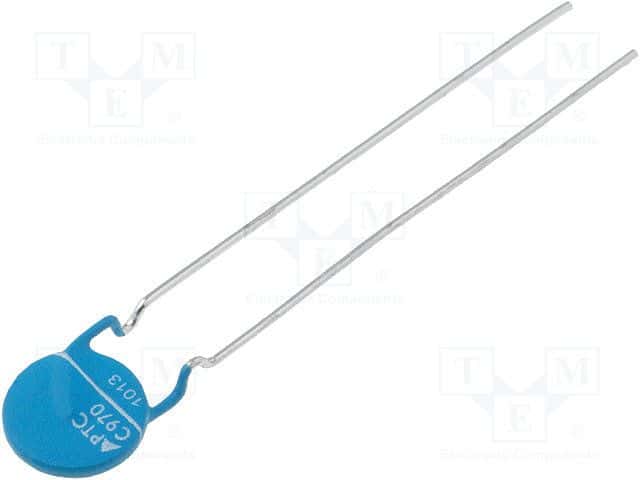

Product Images
