Radial leaded metal oxide varistor (MOV) for circuit protection. Features a 385V DC rated voltage and 300V AC voltage rating. Offers 9.6J energy absorption with a 470V varistor voltage and 775V clamping voltage. Designed for through-hole mounting with a 5mm lead pitch and 4.5mm diameter. Operates across a -40°C to 85°C temperature range.
Capacitance45pF
MountingThrough Hole, Radial
Quick Jump:
Technical Specifications
TDK B72205S0301K101 technical specifications.
General
Capacitance
45pF
Clamping Current
5A
Clamping Voltage
775V
Depth
4.5mm
Diameter
5mm
Energy
9.6J
Lead Length
30mm
Lead Pitch
5mm
Lead/Base Style
Radial
Length
8.5mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Surge Current
400A
Max Varistor Voltage
517V
Min Varistor Voltage
423V
Max Voltage Rating (AC)
300V
Max Voltage Rating (DC)
385V
Mount
Through Hole, Radial
Number of Circuits
1
Package Quantity
1000
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Standard
Thickness
4.5mm
Tolerance
10%
Varistor Voltage
470V
Voltage Rating (AC)
300V
DC Rated Voltage
385V
Weight
0.017637oz
Compliance
RoHS
Compliant
Datasheet
TDK B72205S0301K101 Datasheet
Download the complete datasheet for TDK B72205S0301K101 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

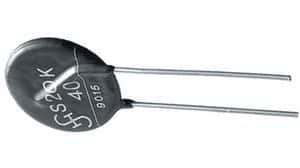

Product Images
