Technical Specifications
TDK B72530E0200K062 technical specifications.
General
| Capacitance | 1.5nF |
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Clamping Current | 2.5A |
| Clamping Voltage | 54V |
| Depth | 2.5mm |
| Energy | 1.9J |
| Length | 3.2mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Varistor Voltage | 36.3V |
| Min Varistor Voltage | 29.7V |
| Max Voltage Rating (AC) | 20V |
| Max Voltage Rating (DC) | 26V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Packaging | Cut Tape |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Varistor Voltage | 33V |
| Voltage Rating (AC) | 20V |
| DC Rated Voltage | 26V |
Compliance
| RoHS | Compliant |
Datasheet
TDK B72530E0200K062 Datasheet
Download the complete datasheet for TDK B72530E0200K062 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

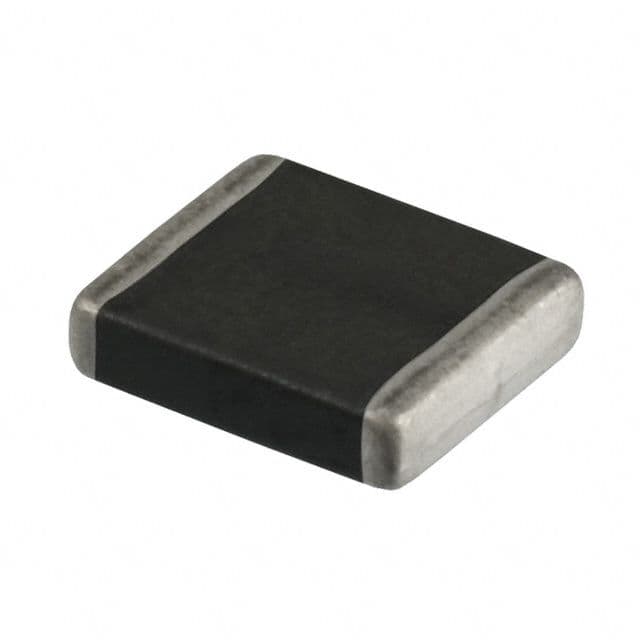

Product Images
