Technical Specifications
TDK B81123C1103M189 technical specifications.
General
| Capacitance | 10nF |
| Package/Case | Radial |
| Construction | RADIAL |
| Depth | 10.5mm |
| Dielectric | PP |
| Dielectric Material | PP |
| Height | 16.5mm |
| Height - Seated (Max) | 0.728inch |
| Lead Diameter | 0.8mm |
| Lead Pitch | 22.5mm |
| Length | 26.5mm |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 1600 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | B81123 |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating (AC) | 500V |
| DC Rated Voltage | 3kV |
| Width | 10.5mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK B81123C1103M189 Datasheet
Download the complete datasheet for TDK B81123C1103M189 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

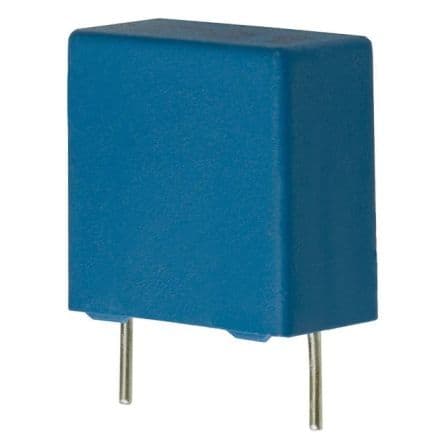

Product Images
