TDK's B82496C3569J000 is a surface mount fixed inductor with a 603 package case, constructed from copper and ceramic core materials. It has a current rating of 700mA and a DC resistance of 150mR. The inductor measures 1.7mm in length and 0.9mm in depth, with a width of 800um. It is RoHS compliant and available in tape and reel packaging.
Package603
Current Rating700mA
Inductance5.6nH
Quick Jump:
Technical Specifications
TDK B82496C3569J000 technical specifications.
General
| Package/Case | 603 |
| Core Material | Copper, Ceramic |
| Current Rating | 700mA |
| DC Current | 700mA |
| DC Resistance (DCR) | 150mR |
| Depth | 0.9mm |
| Inductance | 5.6nH |
| Length | 1.7mm |
| Military Standard | Not |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 6GHz |
| Test Frequency | 100MHz |
| Tolerance | 5% |
| Width | 800um |
Compliance
| RoHS | Compliant |
Datasheet
TDK B82496C3569J000 Datasheet
Download the complete datasheet for TDK B82496C3569J000 to view detailed technical specifications.
No datasheet is available for this part.

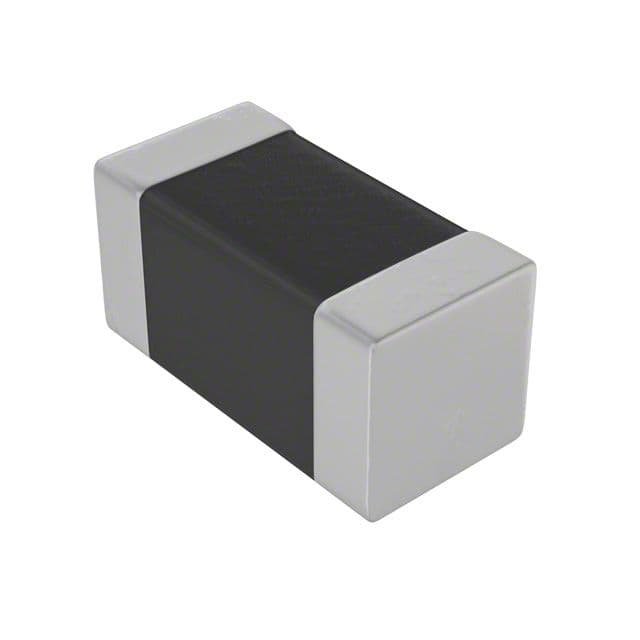

Product Images
