Technical Specifications
TDK B82722A2102N001 technical specifications.
General
| Core Material | Ferrite |
| Depth | 22.7mm |
| Flammability Rating | UL94 V-0 |
| Height | 13.3mm |
| Inductance | 10000uH |
| Inductance Tolerance | 30% |
| Lead Diameter | 0.7mm |
| Lead Free | Lead Free |
| Lead Pitch | 20mm |
| Length | 22.3mm |
| Max Current Rating | 1A |
| Max DC Current | 1A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, Radial |
| Number of Lines | 2 |
| Orientation | Horizontal |
| RoHS Compliant | Yes |
| Series | B82722 |
| Shielding | Unshielded |
| Tolerance | 30% |
| Voltage Rating (AC) | 250V |
| Width | 22.7mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK B82722A2102N001 Datasheet
Download the complete datasheet for TDK B82722A2102N001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

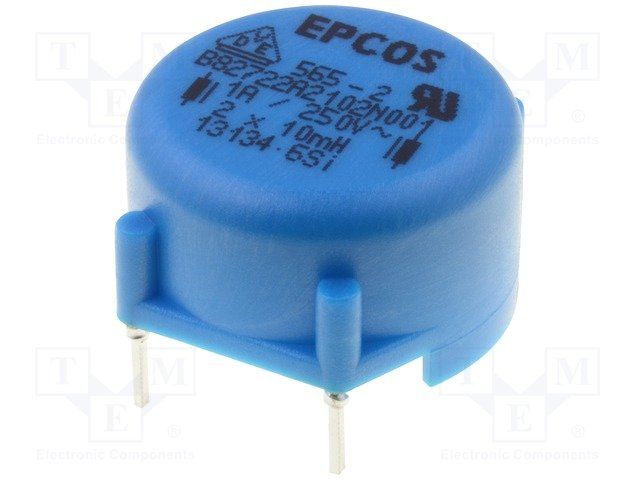

Product Images
