Multilayer Ceramic Capacitor (MLCC) with 3.3pF capacitance and 50V DC rated voltage. Features C0G dielectric for stable performance across a -55°C to 125°C operating temperature range. Packaged in a compact 0402 (1005 metric) surface mount case with dimensions of 1mm length, 0.5mm width, and 0.5mm height. RoHS compliant and supplied on tape and reel.
Package0402
Capacitance3.3pF
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
TDK C1005C0G1H3R3C technical specifications.
General
Capacitance
3.3pF
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
Construction
Flat
Depth
0.5mm
Dielectric
C0G
Dielectric Material
Ceramic
Height
0.5mm
Length
1mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
C
Termination
SMD/SMT
Thickness
0.022inch
Voltage Rating
50V
DC Rated Voltage
50V
Width
0.02inch
Compliance
RoHS
Compliant
Datasheet
TDK C1005C0G1H3R3C Datasheet
Download the complete datasheet for TDK C1005C0G1H3R3C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

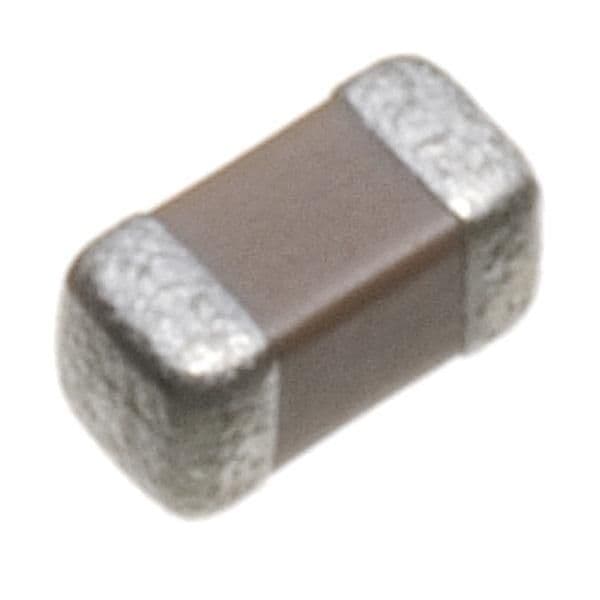

Product Images
