Multilayer Ceramic Capacitor (MLCC) with 4.7µF capacitance and 10V DC rating. Features X6S dielectric material and 10% tolerance. Designed for surface mount (SMD) applications in a 0603 (1608 metric) case code. Operating temperature range from -55°C to 105°C. Low ESR and RoHS compliant. Packaged in tape and reel.
Package0603
Capacitance4.7uF
Voltage Rating10V
MountingSurface Mount
Quick Jump:
Technical Specifications
TDK C1608X6S1A475K080AC technical specifications.
General
| Capacitance | 4.7uF |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Construction | Flat |
| Depth | 0.8mm |
| Dielectric | X6S |
| Dielectric Material | Ceramic |
| Height | 0.8mm |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Material | Ceramic |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | C |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
| Weight | 7.1E-05oz |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK C1608X6S1A475K080AC Datasheet
Download the complete datasheet for TDK C1608X6S1A475K080AC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

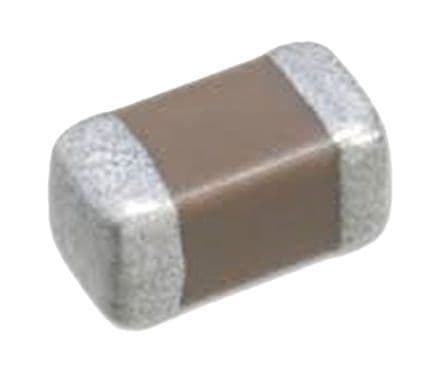

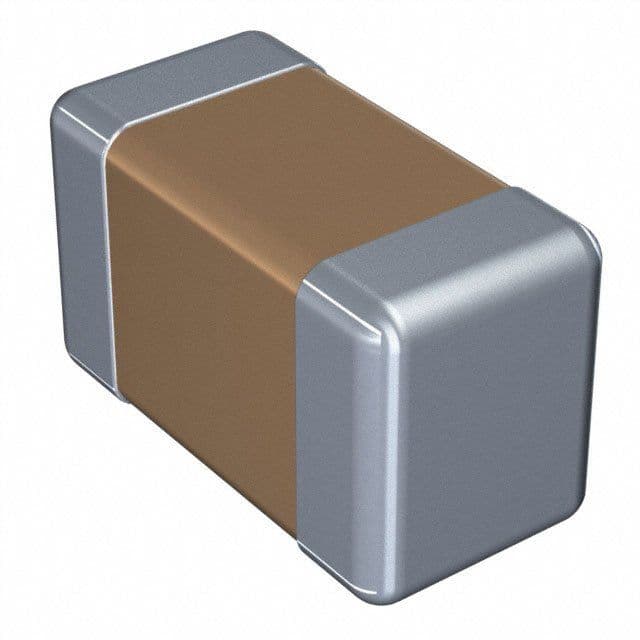

Product Images
