0.022µF, 50V X7R multilayer ceramic capacitor with 10% tolerance. Features a 0603 (1608 metric) SMD package, operating from -55°C to 125°C. Constructed with ceramic dielectric, offering low ESR and a flat profile. Surface mountable and supplied on tape and reel.
Package0603
Voltage50V
Capacitance22nF
Voltage Rating50V
Quick Jump:
Technical Specifications
TDK C1608X7R1H223K080AA technical specifications.
General
| Capacitance | 22nF |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Construction | Flat |
| Depth | 0.8mm |
| Dielectric | X7R |
| Dielectric Material | Ceramic |
| Height | 0.8mm |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | C |
| Termination | SMD/SMT |
| Thickness | 0.037inch |
| Tolerance | 10% |
| Voltage | 50V |
| Voltage Rating | 50V |
| Width | 0.031inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK C1608X7R1H223K080AA Datasheet
Download the complete datasheet for TDK C1608X7R1H223K080AA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

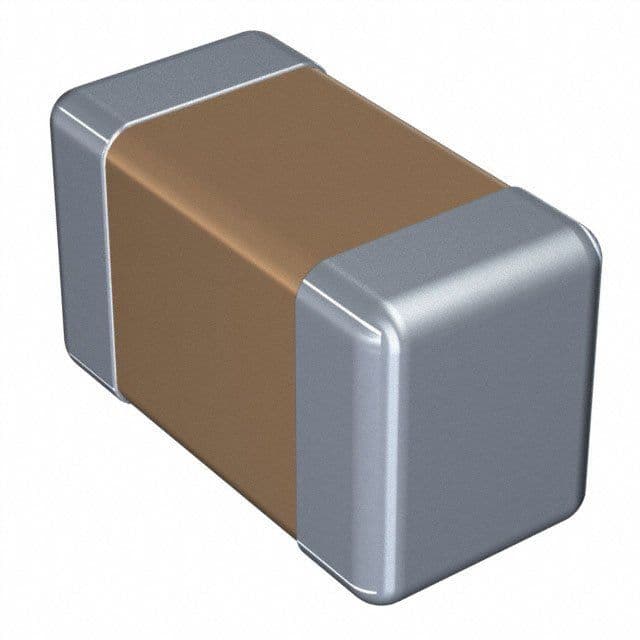

Product Images
