Technical Specifications
TDK C2012C0G2A471J technical specifications.
General
| Capacitance | 470pF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Dielectric | C0G |
| Height | 1.25mm |
| Length | 0.079inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Series | C |
| Termination | SMD/SMT |
| Thickness | 0.03inch |
| Tolerance | 5% |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
| Width | 0.049inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK C2012C0G2A471J Datasheet
Download the complete datasheet for TDK C2012C0G2A471J to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

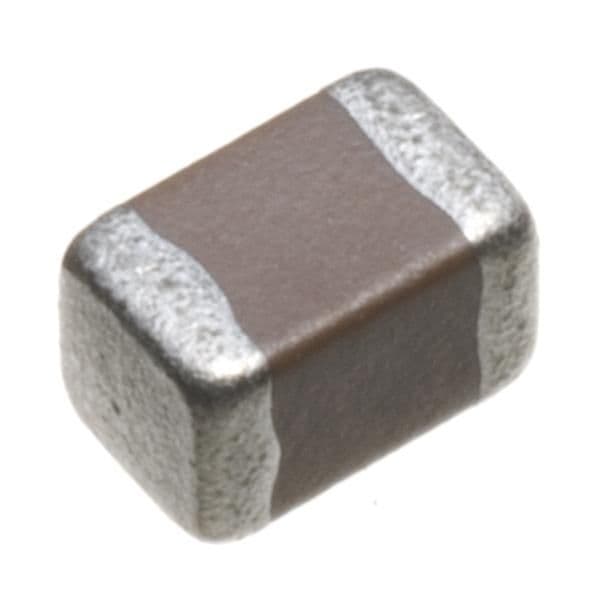

Product Images
