Multilayer Ceramic Capacitor (MLCC) with 1nF capacitance and 100V voltage rating. Features X7R dielectric, 10% tolerance, and a 0805 (2012 metric) SMD package. Operates from -55°C to 125°C, with a lead-free and RoHS compliant construction. Supplied on tape and reel for surface mount applications.
Package0805
Voltage100V
Capacitance1nF
Voltage Rating100V
Quick Jump:
Technical Specifications
TDK C2012X7R2A102K085AA technical specifications.
General
| Capacitance | 1nF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Depth | 1.25mm |
| Dielectric | X7R |
| Height | 0.85mm |
| Lead Free | Lead Free |
| Length | 2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | C |
| Termination | SMD/SMT |
| Thickness | 0.039inch |
| Tolerance | 10% |
| Voltage | 100V |
| Voltage Rating | 100V |
| Width | 0.049inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK C2012X7R2A102K085AA Datasheet
Download the complete datasheet for TDK C2012X7R2A102K085AA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

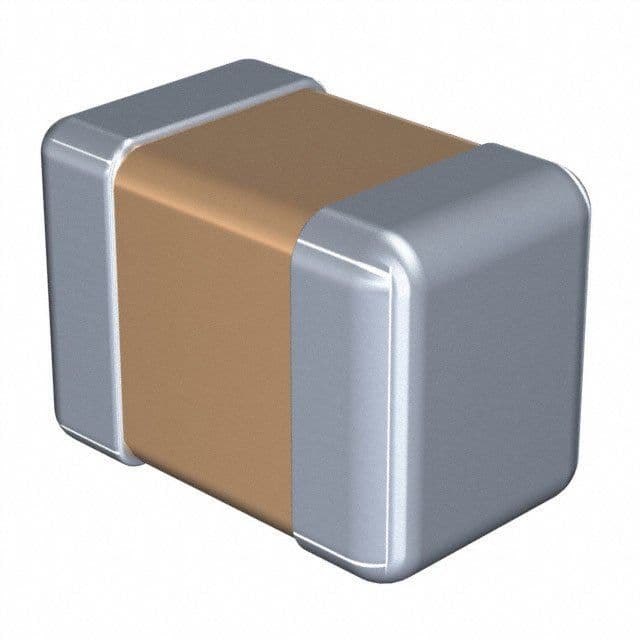

Product Images
