Multilayer Ceramic Capacitor (MLCC) with 100nF capacitance and 250V DC rating. Features X7T dielectric, 10% tolerance, and a 0805 (2012 metric) surface mount case code. Operates from -55°C to 125°C and is RoHS compliant. Packaged in tape and reel.
Package0805
Capacitance100nF
Voltage Rating250V
MountingSurface Mount
Quick Jump:
Technical Specifications
TDK C2012X7T2E104K125AA technical specifications.
General
| Capacitance | 100nF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Depth | 1.25mm |
| Dielectric | X7T |
| Lead Free | Lead Free |
| Length | 0.079inch |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | C |
| Thickness | 0.057inch |
| Tolerance | 10% |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
| Width | 0.049inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK C2012X7T2E104K125AA Datasheet
Download the complete datasheet for TDK C2012X7T2E104K125AA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

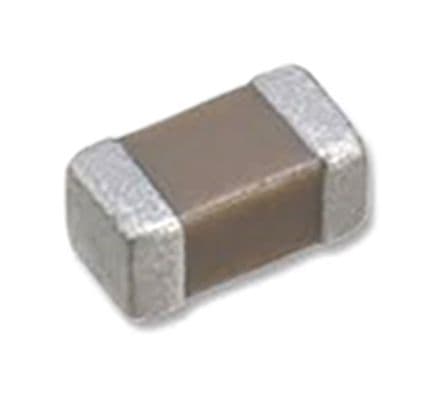

Product Images
