Multilayer ceramic capacitor with 100nF capacitance and 250V DC rating. Features X7T dielectric with a ±10% tolerance and ±33%/+22% temperature coefficient. Surface mountable in an 0805 (2012 metric) case code, measuring 2mm x 1.25mm x 1.25mm. Operates from -55°C to 125°C and is RoHS compliant.
Package0805
Capacitance100nF
Voltage Rating250V
MountingSurface Mount
Quick Jump:
Technical Specifications
TDK C2012X7T2E104K125AE technical specifications.
General
| Capacitance | 100nF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Depth | 1.25mm |
| Dielectric | X7T |
| Features | Soft Termination |
| Height | 1.25mm |
| Length | 2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | C |
| Termination | SMD/SMT |
| Thickness | 0.049inch |
| Tolerance | 10% |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
| Weight | 0.000194oz |
| Width | 0.05inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK C2012X7T2E104K125AE Datasheet
Download the complete datasheet for TDK C2012X7T2E104K125AE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

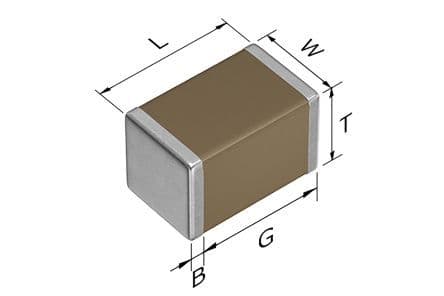

Product Images
