Technical Specifications
TDK C3216X5R1E335K160AA technical specifications.
General
| Capacitance | 3.3uF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Depth | 1.6mm |
| Dielectric | X5R |
| Dielectric Material | Ceramic |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Material | Ceramic |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | C |
| Thickness | 0.071inch |
| Tolerance | 10% |
| Voltage Rating | 25V |
| Width | 0.063inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK C3216X5R1E335K160AA Datasheet
Download the complete datasheet for TDK C3216X5R1E335K160AA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

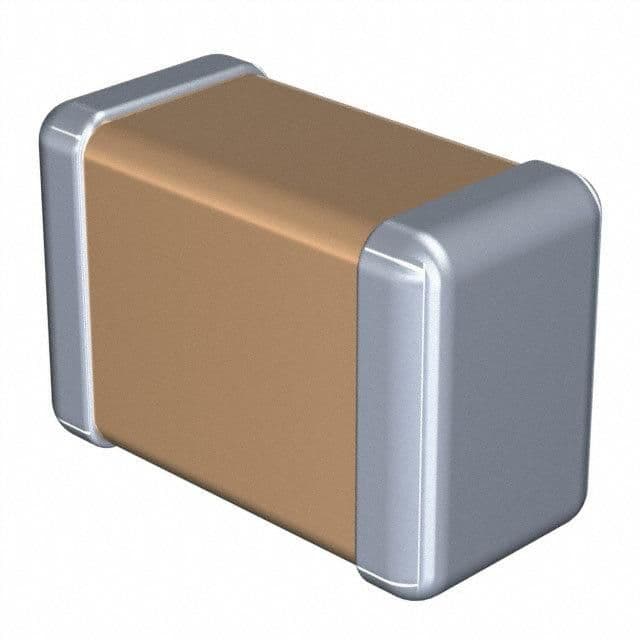

Product Images
