Multilayer Ceramic Capacitor (MLCC) with 47nF capacitance and 50V DC rated voltage. Features C0G dielectric for stable performance across a -55°C to 125°C operating temperature range. Surface mountable in a 1210 (3225 metric) case code with 5% tolerance. Low ESR ceramic construction, lead-free, and RoHS compliant, supplied on tape and reel.
Package1210
Voltage50V
Capacitance47nF
Voltage Rating50V
Quick Jump:
Technical Specifications
TDK C3225C0G1H473J200AA technical specifications.
General
| Capacitance | 47nF |
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Construction | Flat |
| Depth | 2.5mm |
| Dielectric | C0G |
| Dielectric Material | Ceramic |
| Height | 2mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | C |
| Termination | SMD/SMT |
| Thickness | 0.087inch |
| Tolerance | 5% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Weight | 0.000564oz |
| Width | 0.098inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK C3225C0G1H473J200AA Datasheet
Download the complete datasheet for TDK C3225C0G1H473J200AA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

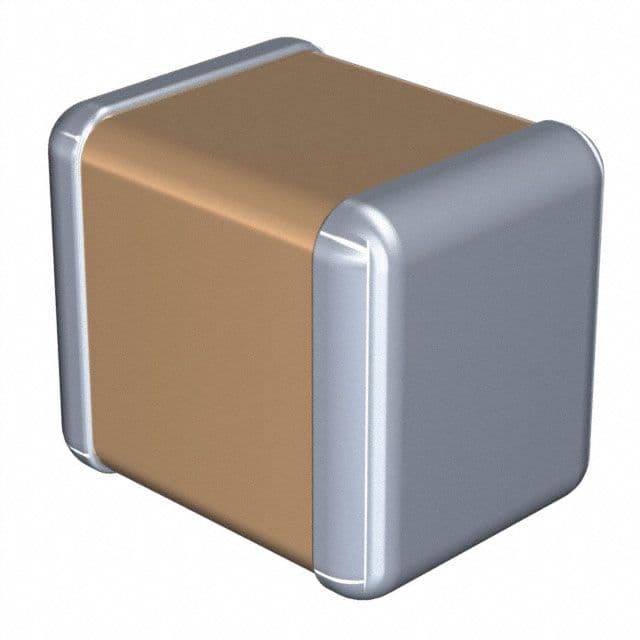

Product Images
