Multilayer Ceramic Capacitor (MLCC) with 33µF capacitance and 10V DC rating. Features X5R dielectric, 20% tolerance, and a 1210 (3225 metric) surface mount case code. Operating temperature range from -55°C to 85°C, with low ESR and lead-free, RoHS-compliant termination. Packaged in tape and reel for automated assembly.
Package1210
Capacitance33uF
Voltage Rating10V
MountingSurface Mount
Quick Jump:
Technical Specifications
TDK C3225X5R1A336M200AC technical specifications.
General
| Capacitance | 33uF |
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Depth | 2.5mm |
| Dielectric | X5R |
| Dielectric Material | Ceramic |
| Height | 2mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Material | Ceramic |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | C |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
| Weight | 0.000564oz |
| Width | 2.5mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK C3225X5R1A336M200AC Datasheet
Download the complete datasheet for TDK C3225X5R1A336M200AC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

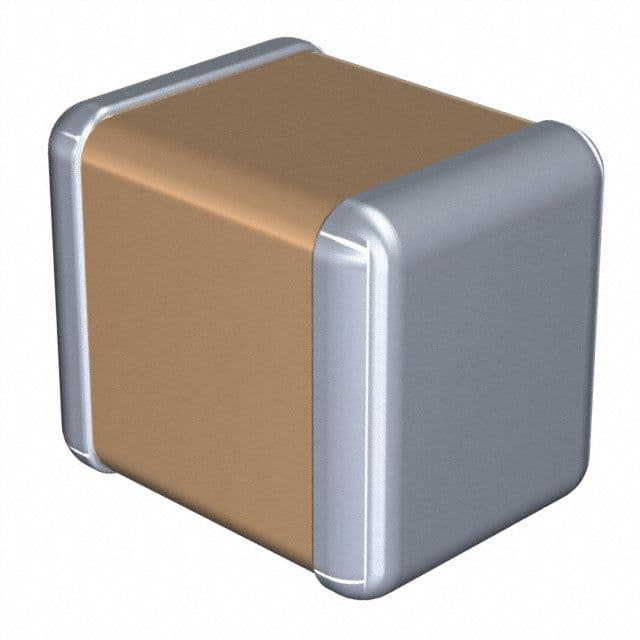

Product Images
