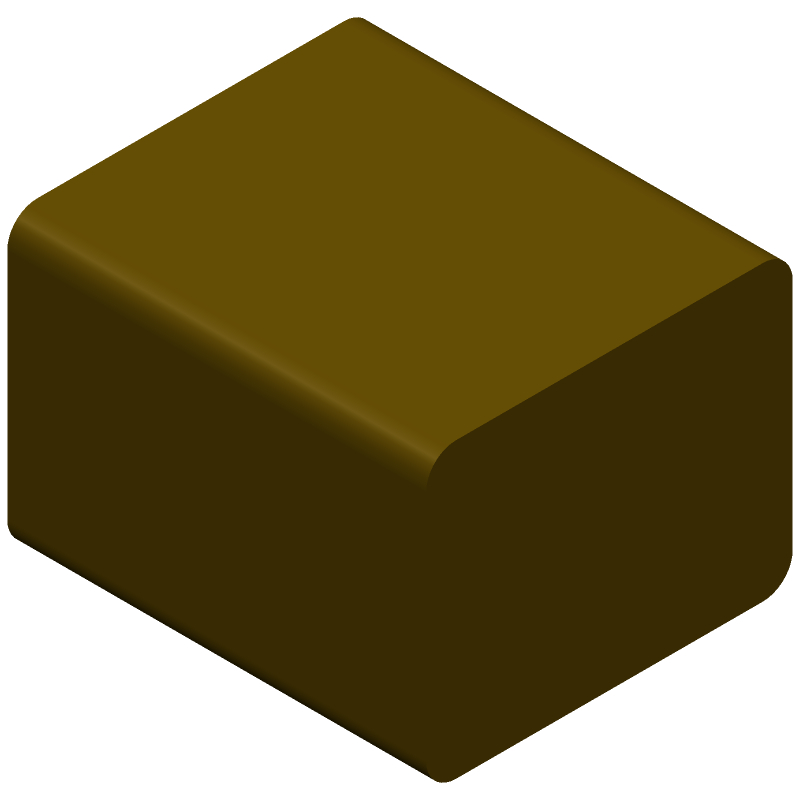

Multilayer Ceramic Capacitor (MLCC) with 1.5µF capacitance and 50V voltage rating. Features X7R dielectric for stable performance across a -55°C to 125°C temperature range, with a 10% tolerance. This surface mount component is housed in a 1210 (3225 metric) case, measuring 3.2mm x 2.5mm x 2mm, and is supplied on tape and reel. Designed for low ESR applications, it is RoHS compliant.
Package1210
Voltage50V
Capacitance1.5uF
Voltage Rating50V
Quick Jump:
Technical Specifications
TDK C3225X7R1H155K200AA technical specifications.
General
| Capacitance | 1.5uF |
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Depth | 2.5mm |
| Dielectric | X7R |
| Dielectric Material | Ceramic |
| Height | 2mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | C |
| Termination | SMD/SMT |
| Thickness | 0.087inch |
| Tolerance | 10% |
| Voltage | 50V |
| Voltage Rating | 50V |
| Width | 0.098inch |
Compliance
| RoHS | Compliant |
