Technical Specifications

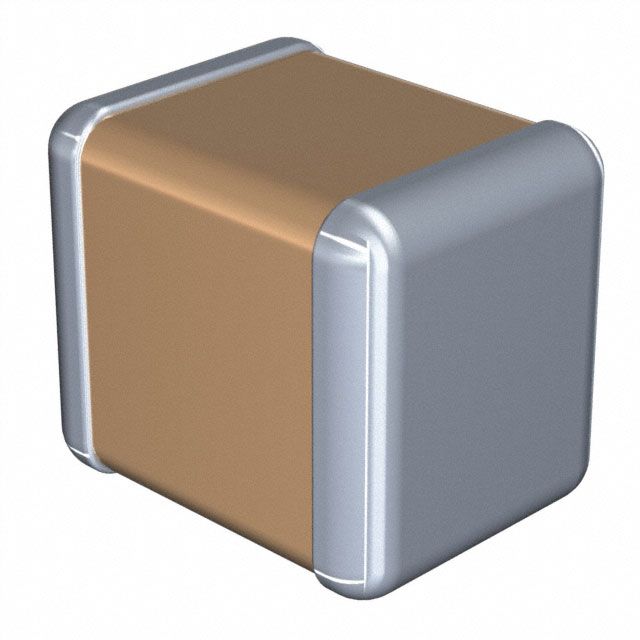

TDK C3225X7R1H155M200AA technical specifications.
General
| Capacitance | 1.5uF |
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Depth | 2.5mm |
| Dielectric | X7R |
| Dielectric Material | Ceramic |
| Lead Free | Lead Free |
| Length | 0.126inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | C |
| Thickness | 0.087inch |
| Tolerance | 20% |
| Voltage Rating | 50V |
| Width | 0.098inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK C3225X7R1H155M200AA Datasheet
Download the complete datasheet for TDK C3225X7R1H155M200AA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
