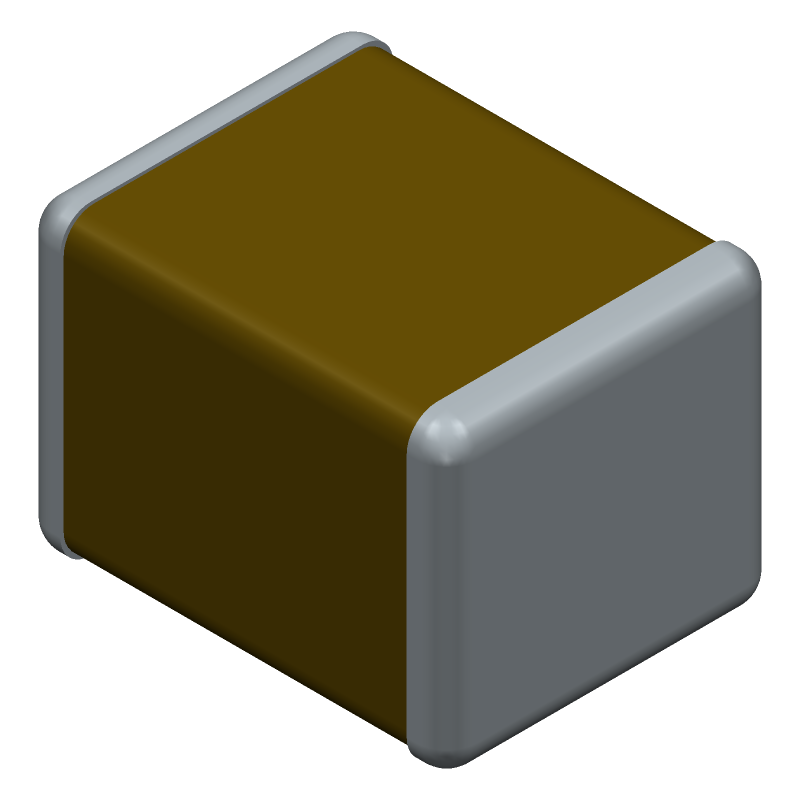

Surface mount multilayer ceramic capacitor with 4.7µF capacitance and 50V voltage rating. Features X7R dielectric for stable performance across a -55°C to 125°C operating temperature range, with a 10% tolerance. Constructed with ceramic material in a 1210 (3225 metric) case size, measuring 3.2mm x 2.5mm x 2.5mm. Packaged on tape and reel for automated assembly.
Package1210
Capacitance4.7uF
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
TDK C3225X7R1H475K250AB technical specifications.
General
| Capacitance | 4.7uF |
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Construction | Flat |
| Depth | 2.5mm |
| Dielectric | X7R |
| Dielectric Material | Ceramic |
| Height | 2.5mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | C |
| Thickness | 0.11inch |
| Tolerance | 10% |
| Voltage Rating | 50V |
| Width | 0.098inch |
Compliance
| RoHS | Compliant |
