This 1pF ceramic capacitor has a voltage rating of 25V and is packaged in the 0201 case size. It is designed for surface mount applications and is compliant with AEC-Q200. The operating temperature range is -55°C to 125°C. The capacitor is made of ceramic material and is available in tape and reel packaging.
Package0201
Capacitance1pF
Voltage Rating25V
MountingSurface Mount
Quick Jump:
Technical Specifications
TDK CGA1A2C0G1E010C030BA technical specifications.
General
| Capacitance | 1pF |
| Case Code (Imperial) | 0201 |
| Case Code (Metric) | 0603 |
| Package/Case | 0201 |
| Depth | 0.3mm |
| Dielectric | C0G |
| Height | 0.3mm |
| Length | 0.6mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| RoHS Compliant | Yes |
| Series | CGA |
| Termination | SMD/SMT |
| Thickness | 0.013inch |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| Weight | 6E-06oz |
| Width | 0.012inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK CGA1A2C0G1E010C030BA Datasheet
Download the complete datasheet for TDK CGA1A2C0G1E010C030BA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

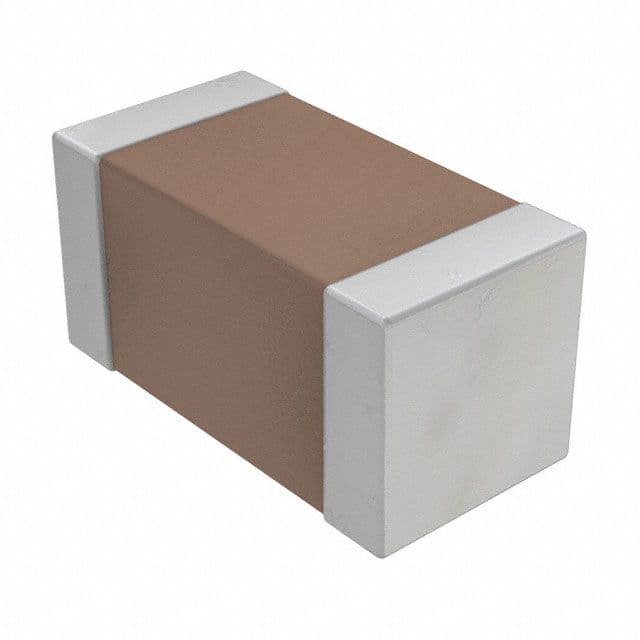

Product Images
