Multilayer ceramic capacitor with 6pF capacitance and 50V voltage rating. Features C0G dielectric for stable performance across temperature, operating from -55°C to 125°C. Surface mountable in a 0402 (1005 metric) case size, measuring 1mm length, 0.5mm width, and 0.5mm height. Low ESR and AEC-Q200 qualified for automotive applications, supplied on tape and reel.
Package0402
Capacitance6pF
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
TDK CGA2B2C0G1H060D050BA technical specifications.
General
| Capacitance | 6pF |
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Depth | 0.5mm |
| Dielectric | C0G |
| Height | 0.5mm |
| Length | 1mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | CGA |
| Termination | SMD/SMT |
| Thickness | 0.022inch |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Weight | 2.3E-05oz |
| Width | 0.02inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK CGA2B2C0G1H060D050BA Datasheet
Download the complete datasheet for TDK CGA2B2C0G1H060D050BA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

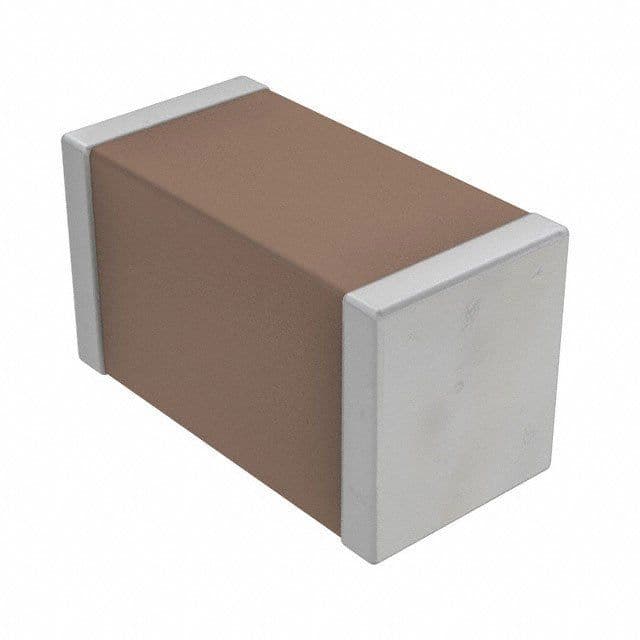

Product Images
