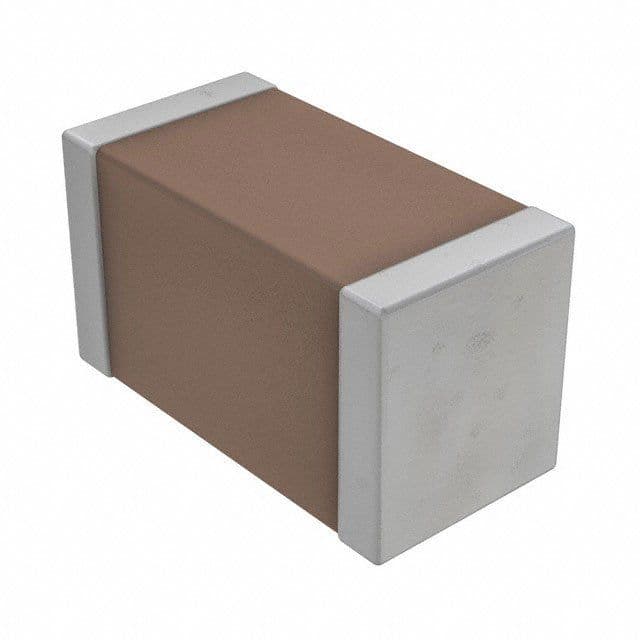

Multilayer Ceramic Capacitor (MLCC) with 3.3µF capacitance and 10V DC rating. Features X5R dielectric, 10% tolerance, and a 0603 (1608 metric) SMD package. Operating temperature range from -55°C to 85°C, with low ESR and AEC-Q200 automotive qualification. Supplied in tape and reel packaging.
Package0603
Capacitance3.3uF
Voltage Rating10V
MountingSurface Mount
Quick Jump:
Technical Specifications
TDK CGA3E1X5R1A335K080AC technical specifications.
General
Capacitance
3.3uF
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Depth
0.8mm
Dielectric
X5R
Height
0.8mm
Length
1.6mm
Material
Ceramic
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
4000
Packaging
Tape and Reel
Ratings
AEC-Q200
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
CGA
Termination
SMD/SMT
Tolerance
10%
Voltage Rating
10V
DC Rated Voltage
10V
Weight
7.1E-05oz
Width
0.8mm
Compliance
RoHS
Compliant
Datasheet
TDK CGA3E1X5R1A335K080AC Datasheet
Download the complete datasheet for TDK CGA3E1X5R1A335K080AC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
