Multilayer ceramic capacitor with 1uF capacitance and 25V DC rated voltage. Features X7R dielectric with a ±10% tolerance and a temperature coefficient of 15%. Designed for surface mount applications with a 0603 (1608 metric) case code. Operates across a wide temperature range from -55°C to 125°C and is RoHS compliant.
Package0603
Voltage25V
Capacitance1uF
Voltage Rating25V
Quick Jump:
Technical Specifications
TDK CGA3E1X7R1E105K080AC technical specifications.
General
Capacitance
1uF
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Depth
0.8mm
Dielectric
X7R
Height
0.8mm
Lead Free
Lead Free
Length
1.6mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Ratings
AEC-Q200
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
CGA
Termination
SMD/SMT
Thickness
0.035inch
Tolerance
10%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Weight
7.1E-05oz
Width
0.031inch
Compliance
RoHS
Compliant
Datasheet
TDK CGA3E1X7R1E105K080AC Datasheet
Download the complete datasheet for TDK CGA3E1X7R1E105K080AC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

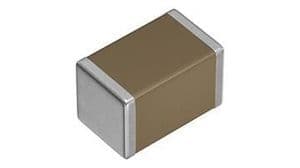

Product Images
