This ceramic capacitor is a multilayer MLCC with a capacitance of 68pF and a voltage rating of 100V. It has a tolerance of 5% and is packaged in a 0603 case. The capacitor is surface mountable and has a maximum operating temperature of 125°C and a minimum operating temperature of -55°C. It is rated to AEC-Q200 standards and is RoHS compliant.
Package0603
Capacitance68pF
Voltage Rating100V
MountingSurface Mount
Quick Jump:
Technical Specifications
TDK CGA3E2C0G2A680J080AA technical specifications.
General
| Capacitance | 68pF |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Dielectric | C0G |
| Height | 0.8mm |
| Length | 0.063inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| RoHS Compliant | Yes |
| Series | CGA |
| Termination | SMD/SMT |
| Thickness | 0.035inch |
| Tolerance | 5% |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
| Weight | 7.1E-05oz |
| Width | 0.031inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK CGA3E2C0G2A680J080AA Datasheet
Download the complete datasheet for TDK CGA3E2C0G2A680J080AA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

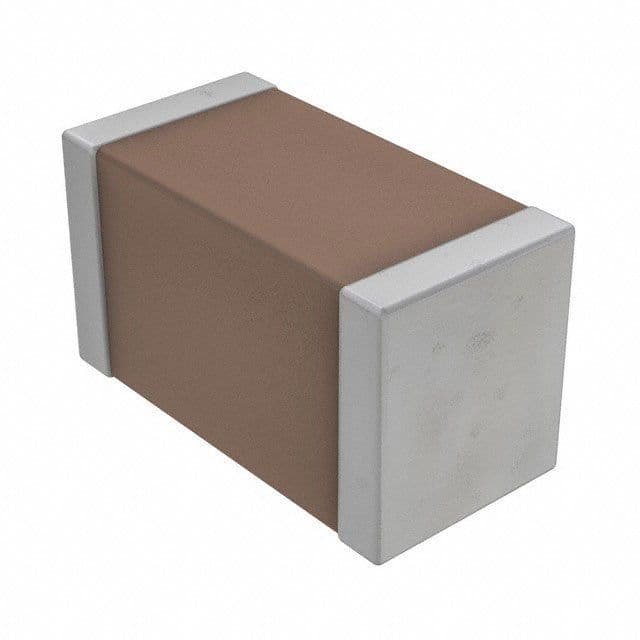

Product Images
