Package0603
Capacitance2pF
Voltage Rating100V
MountingSurface Mount
Quick Jump:
Technical Specifications
TDK CGA3E2NP02A020C080AA technical specifications.
General
Capacitance
2pF
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Dielectric
C0G
Features
High Temperature
Height
0.8mm
Length
0.063inch
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
4000
Packaging
Tape and Reel
Ratings
AEC-Q200
RoHS Compliant
Yes
Series
CGA
Termination
SMD/SMT
Thickness
0.035inch
Voltage Rating
100V
DC Rated Voltage
100V
Weight
7.1E-05oz
Width
0.031inch
Compliance
RoHS
Compliant
Datasheet
TDK CGA3E2NP02A020C080AA Datasheet
Download the complete datasheet for TDK CGA3E2NP02A020C080AA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

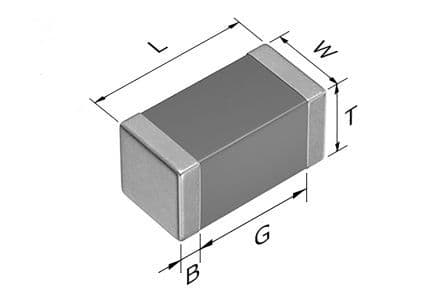

Product Images
