Multilayer Ceramic Capacitor (MLCC) with 68pF capacitance and 100V DC rating. Features C0G dielectric for stable performance across a wide temperature range of -55°C to 150°C. Surface mountable in a 0603 (1608 metric) case code, measuring 1.6mm length, 0.8mm width, and 0.8mm height. Offers 5% tolerance and is AEC-Q200 qualified for automotive applications. Packaged in tape and reel for automated assembly.
Package0603
Capacitance68pF
Voltage Rating100V
MountingSurface Mount
Quick Jump:
Technical Specifications
TDK CGA3E2NP02A680J080AA technical specifications.
General
Capacitance
68pF
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Depth
0.8mm
Dielectric
C0G
Features
High Temperature
Height
0.8mm
Length
1.6mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
4000
Packaging
Tape and Reel
Ratings
AEC-Q200
RoHS Compliant
Yes
Series
CGA
Termination
SMD/SMT
Thickness
0.035inch
Tolerance
5%
Voltage Rating
100V
DC Rated Voltage
100V
Weight
7.1E-05oz
Width
0.031inch
Compliance
RoHS
Compliant
Datasheet
TDK CGA3E2NP02A680J080AA Datasheet
Download the complete datasheet for TDK CGA3E2NP02A680J080AA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

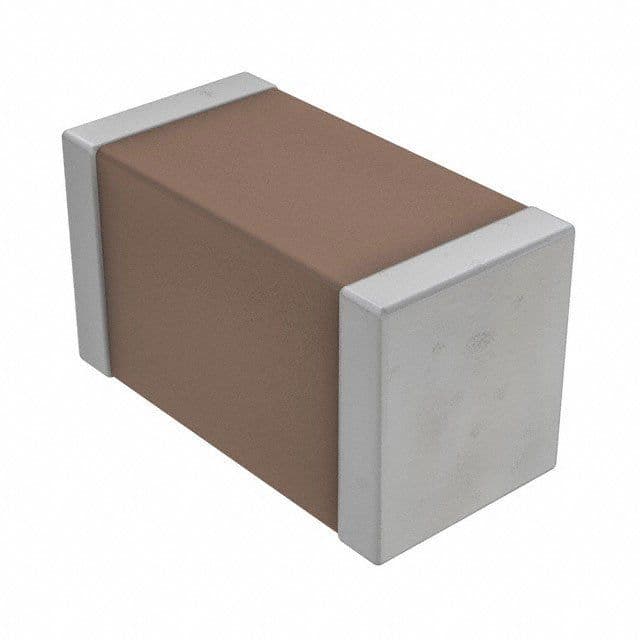

Product Images
