Technical Specifications
TDK CGA4C2C0G2A471J060AA technical specifications.
General
| Capacitance | 470pF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Depth | 1.25mm |
| Dielectric | C0G |
| Lead Free | Lead Free |
| Length | 0.079inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | CGA |
| Thickness | 0.028inch |
| Tolerance | 5% |
| Voltage Rating | 100V |
| Width | 0.049inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK CGA4C2C0G2A471J060AA Datasheet
Download the complete datasheet for TDK CGA4C2C0G2A471J060AA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

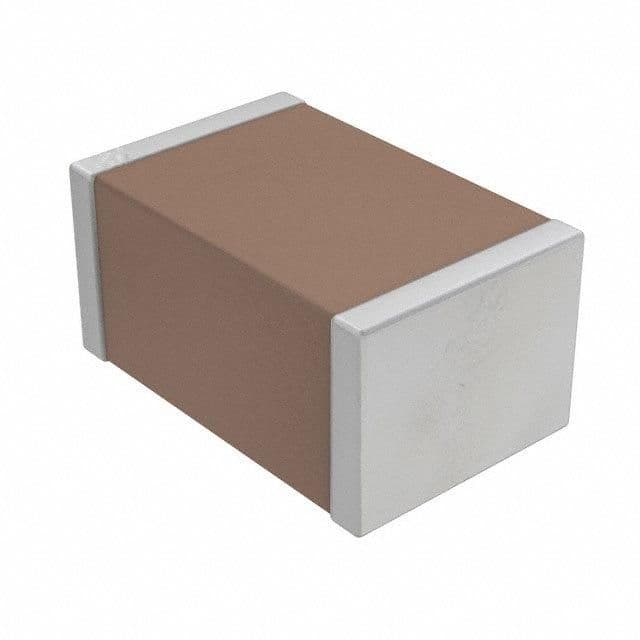

Product Images
