Technical Specifications
TDK CGA4F2X7R2A103K technical specifications.
General
| Capacitance | 10nF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Dielectric | X7R |
| Height | 0.85mm |
| Lead Free | Lead Free |
| Length | 0.079inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| RoHS Compliant | Yes |
| Series | CGA |
| Termination | SMD/SMT |
| Thickness | 0.039inch |
| Tolerance | 10% |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
| Weight | 0.000194oz |
| Width | 0.049inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK CGA4F2X7R2A103K Datasheet
Download the complete datasheet for TDK CGA4F2X7R2A103K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

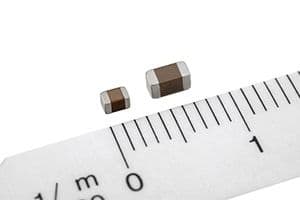

Product Images
