Technical Specifications
TDK CGA4J3X5R1H475M125AB technical specifications.
General
| Capacitance | 4.7uF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Dielectric | X5R |
| Height | 1.25mm |
| Length | 2mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| RoHS Compliant | Yes |
| Series | CGA |
| Tolerance | 20% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Weight | 0.000194oz |
| Width | 1.25mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK CGA4J3X5R1H475M125AB Datasheet
Download the complete datasheet for TDK CGA4J3X5R1H475M125AB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

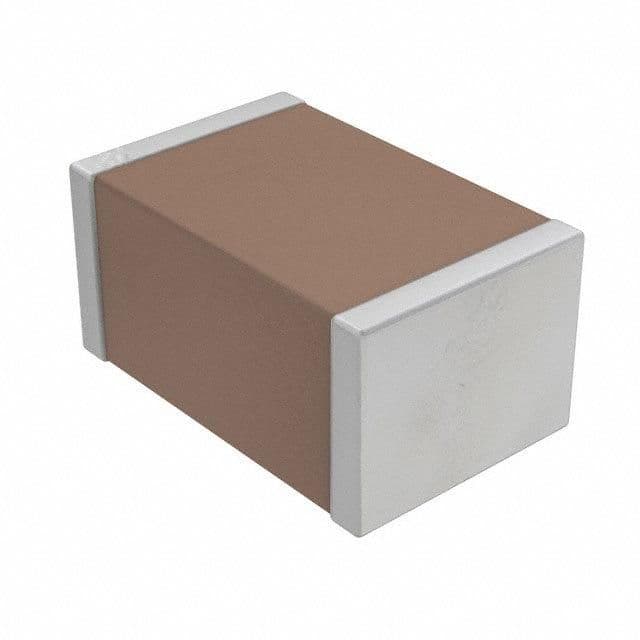

Product Images
