Technical Specifications
TDK CGA4J3X7R1C225K technical specifications.
General
| Capacitance | 2.2uF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Dielectric | X7R |
| Height | 1.45mm |
| Lead Free | Lead Free |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | CGA |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
TDK CGA4J3X7R1C225K Datasheet
Download the complete datasheet for TDK CGA4J3X7R1C225K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

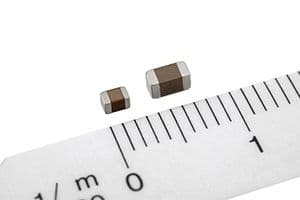

Product Images
