Technical Specifications
TDK CGA4J3X7R1E225M125AB technical specifications.
General
| Capacitance | 2.2uF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Dielectric | X7R |
| Height | 1.25mm |
| Length | 0.079inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| RoHS Compliant | Yes |
| Series | CGA |
| Thickness | 0.057inch |
| Tolerance | 20% |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| Weight | 0.000194oz |
| Width | 0.049inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK CGA4J3X7R1E225M125AB Datasheet
Download the complete datasheet for TDK CGA4J3X7R1E225M125AB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

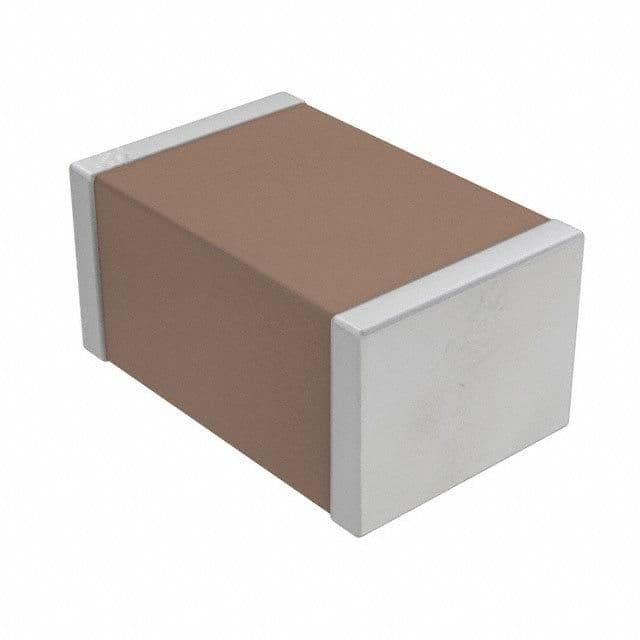

Product Images
