Multilayer Ceramic Capacitor (MLCC) with 2.2nF capacitance and 630V DC rated voltage. Features C0G dielectric, 5% tolerance, and a 1206 (3216 metric) surface mount package. Operates from -55°C to 125°C and is AEC-Q200 qualified. Packaged in tape and reel for automated assembly.
Package1206
Capacitance2.2nF
Voltage Rating630V
MountingSurface Mount
Quick Jump:
Technical Specifications
TDK CGA5H4C0G2J222J115AA technical specifications.
General
| Capacitance | 2.2nF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Depth | 1.6mm |
| Dielectric | C0G |
| Height | 1.15mm |
| Length | 3.2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | CGA |
| Termination | SMD/SMT |
| Thickness | 0.051inch |
| Tolerance | 5% |
| Voltage Rating | 630V |
| DC Rated Voltage | 630V |
| Weight | 0.000571oz |
| Width | 0.063inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK CGA5H4C0G2J222J115AA Datasheet
Download the complete datasheet for TDK CGA5H4C0G2J222J115AA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

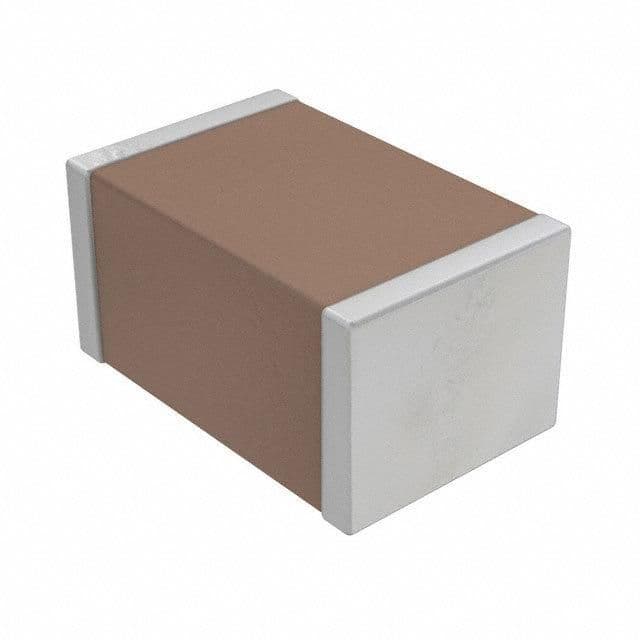

Product Images
