Multilayer ceramic capacitor with 22nF capacitance and 100V DC rating. Features C0G dielectric, 5% tolerance, and a 1210 (3225 metric) surface mount package. Operates from -55°C to 125°C and is AEC-Q200 qualified. Packaged in tape and reel, this RoHS compliant component is suitable for automotive applications.
Package1210
Capacitance22nF
Voltage Rating100V
MountingSurface Mount
Quick Jump:
Technical Specifications
TDK CGA6L2C0G2A223J160AA technical specifications.
General
| Capacitance | 22nF |
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Depth | 2.5mm |
| Dielectric | C0G |
| Height | 1.6mm |
| Length | 3.2mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | CGA |
| Termination | SMD/SMT |
| Thickness | 0.071inch |
| Tolerance | 5% |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
| Weight | 0.000564oz |
| Width | 0.098inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK CGA6L2C0G2A223J160AA Datasheet
Download the complete datasheet for TDK CGA6L2C0G2A223J160AA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

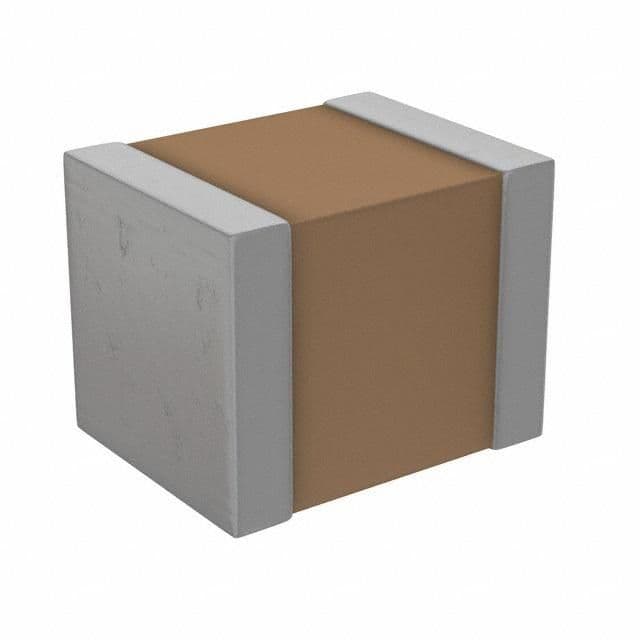

Product Images
