Surface mount multilayer ceramic capacitor with 10µF capacitance and 25V DC rating. Features X7R dielectric, 10% tolerance, and a 1210 (3225 metric) case code. Operating temperature range from -55°C to 125°C. Automotive AEC-Q200 qualified and RoHS compliant. Packaged in tape and reel.
Package1210
Capacitance10uF
Voltage Rating25V
MountingSurface Mount
Quick Jump:
Technical Specifications
TDK CGA6P1X7R1E106K250AC technical specifications.
General
| Capacitance | 10uF |
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Depth | 2.5mm |
| Dielectric | X7R |
| Height | 2.5mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | CGA |
| Termination | SMD/SMT |
| Thickness | 0.11inch |
| Tolerance | 10% |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| Weight | 0.000564oz |
| Width | 0.098inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK CGA6P1X7R1E106K250AC Datasheet
Download the complete datasheet for TDK CGA6P1X7R1E106K250AC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

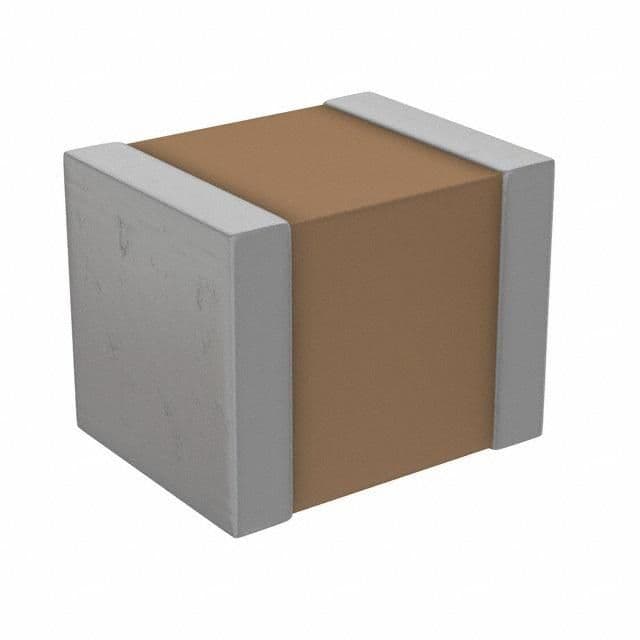

Product Images
