Multilayer Ceramic Capacitor (MLCC) with 22µF capacitance and 25V voltage rating. Features X7R dielectric, 20% tolerance, and a 1812 (4532 metric) surface mount package. Operates from -55°C to 125°C, is RoHS compliant, and AEC-Q200 qualified for automotive applications. Packaged in tape and reel.
Package1812
Capacitance22uF
Voltage Rating25V
MountingSurface Mount
Quick Jump:
Technical Specifications
TDK CGA8P1X7R1E226M250KC technical specifications.
General
| Capacitance | 22uF |
| Case Code (Imperial) | 1812 |
| Case Code (Metric) | 4532 |
| Package/Case | 1812 |
| Depth | 3.2mm |
| Dielectric | X7R |
| Lead Free | Lead Free |
| Length | 4.5mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | CGA |
| Tolerance | 20% |
| Voltage Rating | 25V |
Compliance
| RoHS | Compliant |
Datasheet
TDK CGA8P1X7R1E226M250KC Datasheet
Download the complete datasheet for TDK CGA8P1X7R1E226M250KC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

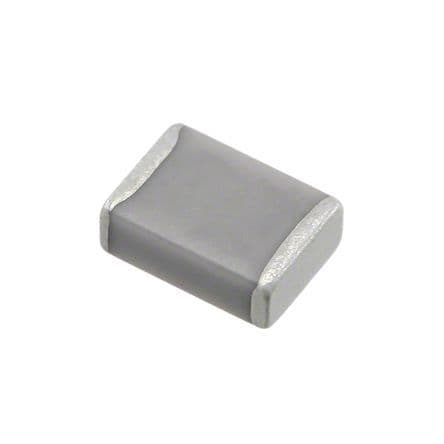

Product Images
