Multilayer ceramic capacitor with 2.2µF capacitance and 250V DC rating. Features X7T dielectric, 10% tolerance, and a 2220 (5750 metric) SMD package. Designed for surface mounting with soft termination, operating from -55°C to 125°C. AEC-Q200 qualified and RoHS compliant, supplied on tape and reel.
Package2220
Capacitance2.2uF
Voltage Rating250V
MountingSurface Mount
Quick Jump:
Technical Specifications
TDK CGA9P3X7T2E225K250KE technical specifications.
General
| Capacitance | 2.2uF |
| Case Code (Imperial) | 2220 |
| Case Code (Metric) | 5750 |
| Package/Case | 2220 |
| Depth | 5mm |
| Dielectric | X7T |
| Features | Soft Termination |
| Height | 2.5mm |
| Lead Free | Lead Free |
| Length | 5.7mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | CGA |
| Termination | SMD/SMT |
| Thickness | 0.11inch |
| Tolerance | 10% |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
| Weight | 0.016932oz |
| Width | 0.197inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK CGA9P3X7T2E225K250KE Datasheet
Download the complete datasheet for TDK CGA9P3X7T2E225K250KE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

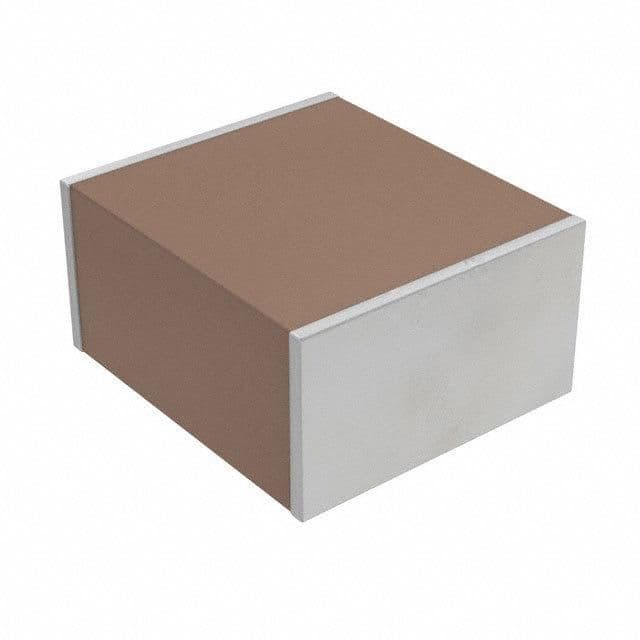

Product Images
