Multilayer Ceramic Capacitor (MLCC) with 1µF capacitance and 450V DC rating. Features X7T dielectric, 10% tolerance, and a 2220 (5750 metric) surface mount package. Operates from -55°C to 125°C, meeting AEC-Q200 automotive standards. Packaged in tape and reel for automated assembly.
Package2220
Capacitance1uF
Voltage Rating450V
MountingSurface Mount
Quick Jump:
Technical Specifications
TDK CGA9P4X7T2W105K250KA technical specifications.
General
| Capacitance | 1uF |
| Case Code (Imperial) | 2220 |
| Case Code (Metric) | 5750 |
| Package/Case | 2220 |
| Depth | 5mm |
| Dielectric | X7T |
| Height | 2.5mm |
| Length | 5.7mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| RoHS Compliant | Yes |
| Series | CGA |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage Rating | 450V |
| DC Rated Voltage | 450V |
| Weight | 0.016932oz |
| Width | 5mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK CGA9P4X7T2W105K250KA Datasheet
Download the complete datasheet for TDK CGA9P4X7T2W105K250KA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

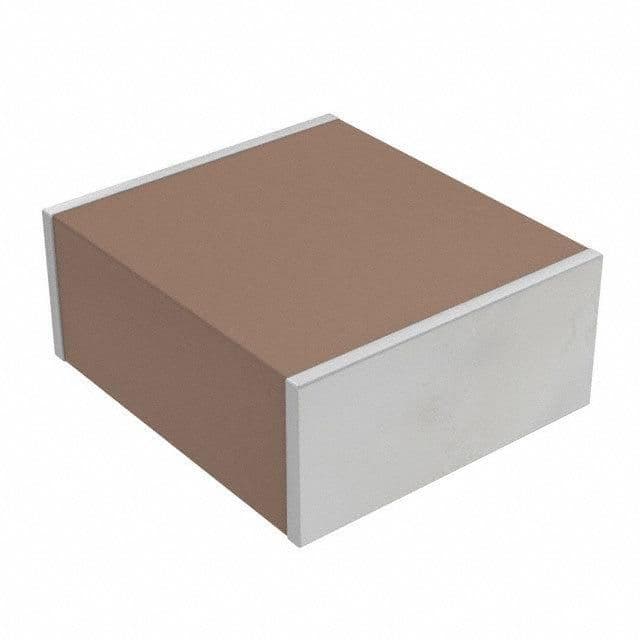

Product Images
