Surface mount shielded wirewound power inductor with 3.3µH inductance and 30% tolerance. Features a ferrite core, 4.8A RMS current, 6.6A saturation current, and 14.3mΩ DCR. Operates from -40°C to 150°C and meets AEC-Q200 automotive standards. Packaged in cut tape for automated assembly.
PackageNonstandard
MountingSurface Mount
Inductance3.3uH
Quick Jump:
Technical Specifications
TDK CLF10040T-3R3N-D technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
DC Resistance (DCR)
14.3mR
Depth
9.7mm
Height
3.8mm
Inductance
3.3uH
Inductance Tolerance
30%
Length
10mm
Max DC Current
6.6A
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
800
Packaging
Cut Tape
Ratings
AEC-Q200
Reach SVHC Compliant
No
RMS Current (Irms)
4.8A
Saturation Current
6.6A
Self Resonant Frequency
100kHz
Series
CLF-D
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
30%
Width
9.7mm
Compliance
RoHS
Compliant
Datasheet
TDK CLF10040T-3R3N-D Datasheet
Download the complete datasheet for TDK CLF10040T-3R3N-D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

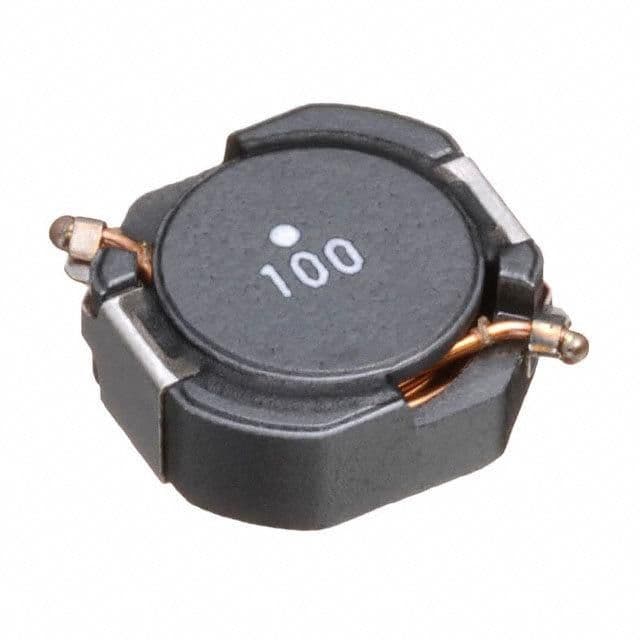

Product Images
