Surface mount shielded wirewound power inductor with 3.3µH inductance and 30% tolerance. Features a ferrite core, 5.7A RMS current, and 11.4A saturation current. Operates within a -40°C to 105°C temperature range, with a low DC resistance of 13.4mΩ. Dimensions are 12.5mm length, 12.1mm width, and 5.5mm height.
PackageNonstandard
MountingSurface Mount
Inductance3.3uH
Quick Jump:
Technical Specifications
TDK CLF12555T-3R3N technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
DC Resistance (DCR)
13.4mR
Depth
12.1mm
Height
5.5mm
Inductance
3.3uH
Inductance Tolerance
30%
Length
12.5mm
Max DC Current
11.4A
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Packaging
Cut Tape
Reach SVHC Compliant
No
RMS Current (Irms)
5.7A
RoHS Compliant
Yes
Saturation Current
11.4A
Self Resonant Frequency
100kHz
Series
CLF
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
30%
Width
12.1mm
Compliance
RoHS
Compliant
Datasheet
TDK CLF12555T-3R3N Datasheet
Download the complete datasheet for TDK CLF12555T-3R3N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

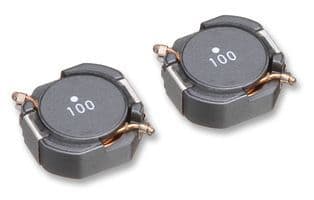

Product Images
