75W AC-DC regulated power supply module featuring a 15V nominal output voltage and 5A maximum output current. This board mount DC/DC converter offers 3kV isolation voltage and operates with 85% efficiency across a wide input voltage range of 90V to 264V AC. Designed for versatile mounting options including DIN rail and panel, it boasts a compact package with dimensions of 2.19" x 3.54" x 3.58" and an operating temperature range of -25°C to 71°C. RoHS compliant and CE approved, this module provides reliable power conversion for demanding applications.
Package100
MountingDIN Rail, Panel
Power75W
Quick Jump:
Technical Specifications
TDK DSP100-15 technical specifications.
General
Approvals
CE
Package/Case
100
Current - Output 1
5A
Depth
55.6mm
Efficiency
85%
Height
3.58inch
Isolation Voltage
3kV
Length
2.19inch
Min Input Voltage (AC)
90V
Max Input Voltage
264V
Min Input Voltage
90V
Max Operating Temperature
71°C
Min Operating Temperature
-25°C
Max Output Current
5A
Max Output Power
75W
Max Power Dissipation
100W
Mount
DIN Rail, Panel
Nominal Output Voltage
15V
Number of Outputs
1
Output Current
5A
Output Power
75W
Output Voltage
15V
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
DSP
Voltage - Output 1
15V
Weight
11.287668oz
Width
3.54inch
Compliance
RoHS
Compliant
Datasheet
TDK DSP100-15 Datasheet
Download the complete datasheet for TDK DSP100-15 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

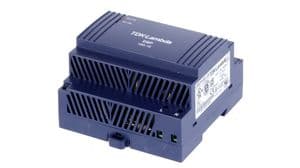

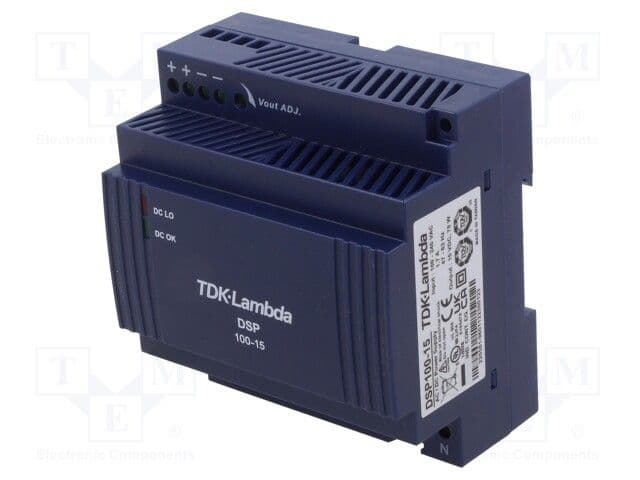

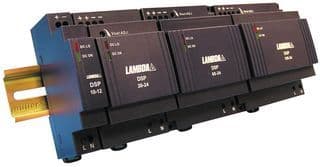

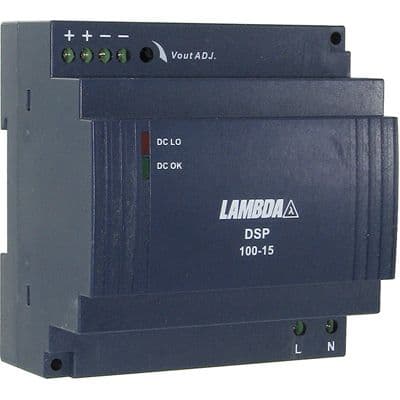

Product Images
