Board mount DC/DC converter, 91W output power, 24V nominal output voltage, 3.8A maximum output current. Features 90-264V AC input range, 89% efficiency, and 3kV isolation voltage. Operates from -25°C to 71°C with DIN rail and panel mounting options.
MountingDIN Rail, Panel
Power91W
Quick Jump:
Technical Specifications
TDK DSP100-24/C2 technical specifications.
General
Current - Output 1
3.8A
Depth
55.6mm
Efficiency
89%
Height
2.19inch
Isolation Voltage
3kV
Length
3.54inch
Max Input Voltage (AC)
264V
Min Input Voltage (AC)
90V
Max Input Voltage
264V
Min Input Voltage
90V
Max Operating Temperature
71°C
Min Operating Temperature
-25°C
Max Output Current
3.8A
Max Output Power
91.2W
Max Power Dissipation
100W
Mount
DIN Rail, Panel
Nominal Output Voltage
24V
Number of Outputs
1
Output Current
3.8A
Output Power
91W
Output Voltage
24V
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
DSP (7.5-100W)
Voltage - Output 1
24V
Weight
11.287668oz
Width
3.58inch
Compliance
RoHS
Compliant
Datasheet
TDK DSP100-24/C2 Datasheet
Download the complete datasheet for TDK DSP100-24/C2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

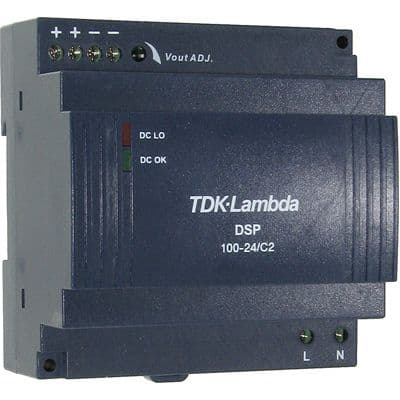

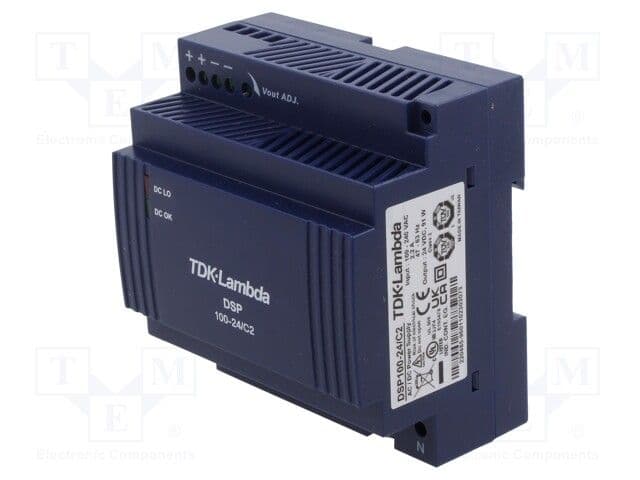

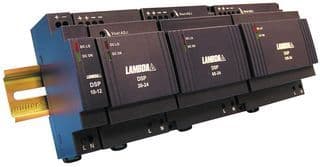

Product Images
