Single-output AC/DC power supply delivering 645W maximum output power with a nominal output voltage of 15V and a continuous output current rating of 43A. Features 85% efficiency, 3kV isolation voltage, and operates across an input voltage range of 85-265V AC. Designed for chassis or panel mounting, this power supply offers a wide operating temperature range from -10°C to 70°C and is CE approved.
Current Rating43A
MountingChassis Mount, Panel
Power645W
Quick Jump:
Technical Specifications
TDK HWS600-15 technical specifications.
General
Approvals
CE
Current - Output 1
53A
Current Rating
43A
Depth
100.08mm
Efficiency
85%
Height
3.23inch
Isolation Voltage
3kV
Length
6.5inch
Max Input Voltage (AC)
265V
Min Input Voltage (AC)
85V
Max Input Voltage
265V
Min Input Voltage
85V
Max Operating Temperature
70°C
Min Operating Temperature
-10°C
Max Output Current
43A
Max Output Power
645W
Max Power Dissipation
600W
Mount
Chassis Mount, Panel
Nominal Output Voltage
15V
Number of Outputs
1
Output Current
43A
Output Power
645W
Output Voltage
15V
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Series
HWS
Voltage - Output 1
15V
Weight
12.787lb
Width
3.94inch
Compliance
RoHS
Compliant
Datasheet
TDK HWS600-15 Datasheet
Download the complete datasheet for TDK HWS600-15 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

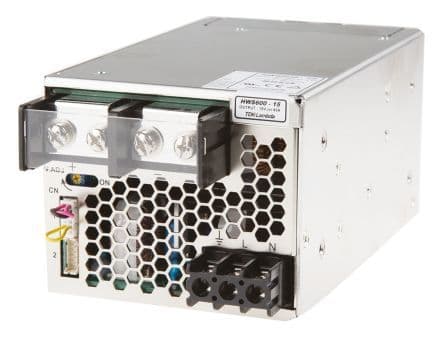

Product Images
