Board mount DC/DC converter, 25W AC-DC regulated power supply module. Features 24V nominal output voltage with 1.1A maximum output current. Operates from 88V to 264V AC input, offering 3kV isolation voltage. With 84% efficiency and a wide operating temperature range of -25°C to 70°C, this module is suitable for chassis or panel mounting.
MountingChassis Mount, Panel
Power26W
Quick Jump:
Technical Specifications
TDK LS25-24 technical specifications.
General
Current - Output 1
1.1A
Depth
50.8mm
Efficiency
84%
Height
1.1inch
Isolation Voltage
3kV
Length
3.1inch
Max Input Voltage (AC)
264V
Min Input Voltage (AC)
88V
Max Input Voltage
264V
Min Input Voltage
88V
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Output Current
1.1A
Max Output Power
25W
Max Power Dissipation
25W
Mount
Chassis Mount, Panel
Nominal Output Voltage
24V
Number of Outputs
1
Output Current
1.1A
Output Power
26W
Output Voltage
24V
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
LS (25W)
Voltage - Output 1
24V
Weight
1.235lb
Width
2inch
Compliance
RoHS
Compliant
Datasheet
TDK LS25-24 Datasheet
Download the complete datasheet for TDK LS25-24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

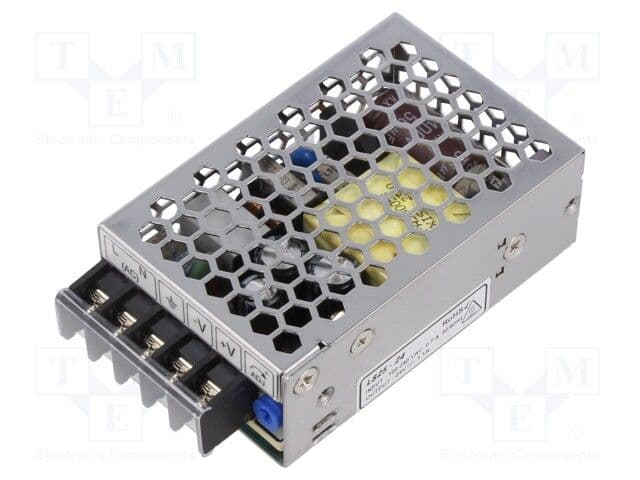

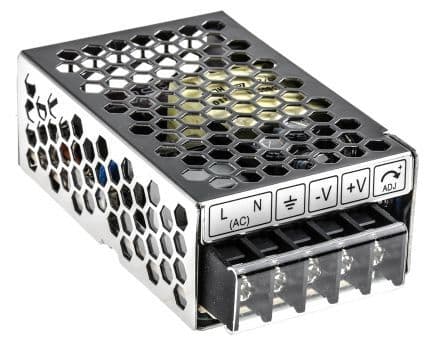

Product Images
