30W AC/DC enclosed power supply featuring 5V at 5A, +12V at 1.2A, and -12V at 600mA outputs. This chassis mount converter operates from 85-265V AC input, delivering 30W maximum output power with 73% efficiency. It offers 3kV isolation voltage and a wide operating temperature range of 0°C to 60°C. Approvals include CE, UL, and CSA.
MountingChassis Mount, Panel
Power30W
Quick Jump:
Technical Specifications
TDK LWT-30H-522 technical specifications.
General
Approvals
CE, UL, CSA
Current - Output 1
5A
Current - Output 2
1.2A
Current - Output 3
600mA
Depth
60mm
Efficiency
73%
Height
0.98inch
Isolation Voltage
3kV
Lead Free
Lead Free
Length
6.29inch
Max Input Voltage (AC)
265V
Min Input Voltage (AC)
85V
Max Input Voltage
265V
Min Input Voltage
85V
Max Operating Temperature
60°C
Min Operating Temperature
0°C
Max Output Current
1.2A
Max Output Power
30W
Max Power Dissipation
30W
Mount
Chassis Mount, Panel
Number of Outputs
3
Output Current
5A
Output Power
30W
Output Voltage
5V
Package Quantity
1
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
No
Series
LW
Voltage - Output 1
5V
Voltage - Output 2
12V
Voltage - Output 3
-12V
Weight
300g
Width
2.75inch
Compliance
RoHS
Not CompliantNo
Datasheet
TDK LWT-30H-522 Datasheet
Download the complete datasheet for TDK LWT-30H-522 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

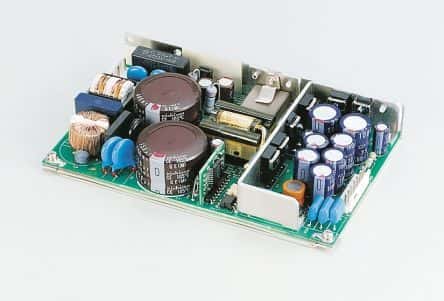

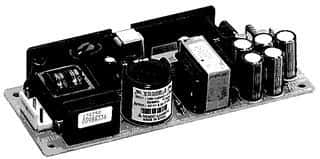

Product Images
