TDK
MLZ2012A3R3W
Inductor Power Shielded Multi-Layer 3.3uH 20% 10MHz Ferrite 450mA 442mOhm DCR 0805 T/R
Package0805
Inductance3.3uH
Quick Jump:
Technical Specifications
TDK MLZ2012A3R3W technical specifications.
General
Package/Case
0805
DC Resistance (DCR)
340mR
Inductance
3.3uH
Lead Free
Lead Free
Length
2mm
Max DC Current
450mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Packaging
Tape and Reel
Rated Current-Max
200mA
Self Resonant Frequency
90MHz
Series
MLZ
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
10MHz
Tolerance
20%
Weight
0.000194oz
Width
1.25mm
Compliance
RoHS
Compliant
Datasheet
TDK MLZ2012A3R3W Datasheet
Download the complete datasheet for TDK MLZ2012A3R3W to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

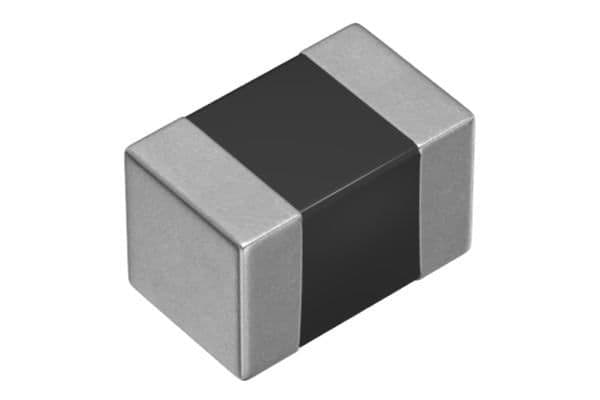

Product Images
