General purpose, surface mount inductor with 1mH inductance and 5% tolerance. Features a ferrite core, 30mA rated current, and 40 Ohm DC resistance. Packaged in an 1812 (4.5mm x 3.2mm) SMD case, operating from -40°C to 105°C. RoHS compliant and available on tape and reel.
Package1812
Current Rating30mA
MountingSurface Mount
Inductance1mH
Quick Jump:
Technical Specifications
TDK NL453232T-102J-PF technical specifications.
General
Case Code (Imperial)
1812
Case Code (Metric)
4532
Package/Case
1812
Core Material
Ferrite
Current Rating
30mA
DC Current
30mA
DC Resistance (DCR)
40R
Depth
3.4mm
Height
3.2mm
Height - Seated (Max)
0.134inch
Inductance
1mH
Inductance Tolerance
5%
Lead Free
Lead Free
Length
4.5mm
Max DC Current
30mA
Max Operating Temperature
105°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
500
Packaging
Tape and Reel
Q Factor
30
Radiation Hardening
No
Rated Current-Max
30mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Self Resonant Frequency
2.5MHz
Series
NL
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
252kHz
Tolerance
5%
Type
General Purpose
Weight
0.006349oz
Width
0.126inch
Compliance
RoHS
Compliant
Datasheet
TDK NL453232T-102J-PF Datasheet
Download the complete datasheet for TDK NL453232T-102J-PF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

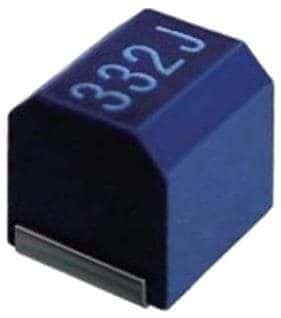

Product Images
