Surface mount fixed inductor featuring a 220µH inductance with a 5% tolerance, designed for general-purpose applications. This unshielded, wirewound ferrite core component operates within a -40°C to 105°C temperature range and boasts a Q factor of 20 at 796kHz. It supports a maximum DC current of 50mA and has a DC resistance of 21 Ohms. The 1210 (3225 metric) case size, with dimensions of 3.2mm length, 2.5mm width, and 2.2mm height, is provided in tape and reel packaging.
Package1210
MountingSurface Mount
Inductance220uH
Quick Jump:
Technical Specifications
TDK NLV32T-221J-EF technical specifications.
General
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Core Material | Ferrite |
| DC Resistance (DCR) | 21R |
| Height | 2.2mm |
| Inductance | 220uH |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max DC Current | 50mA |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Q Factor | 20 |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 7MHz |
| Series | NLV-EF |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 796kHz |
| Tolerance | 5% |
| Weight | 0.001764oz |
| Width | 2.5mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK NLV32T-221J-EF Datasheet
Download the complete datasheet for TDK NLV32T-221J-EF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

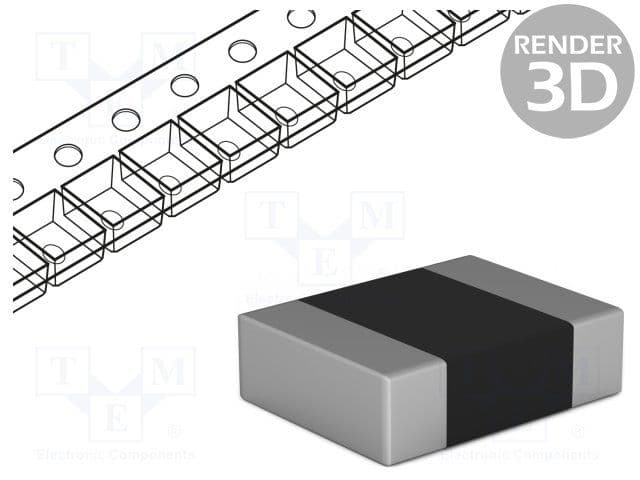

Product Images
